Lockable 2-parttooth air fitting
2-tooth external thread can be adapted to 4mm, 6mm, 8mm, and 10mm air tubes.
Air hose to 1-part,2-part, M-fit fittings
Trachea for M5, M6, M8, l tooth and 2 tooth can
- Ф4, Ф6, ф8 and Ф10
Be selected - brass (nickel plated)Material
Product Overview

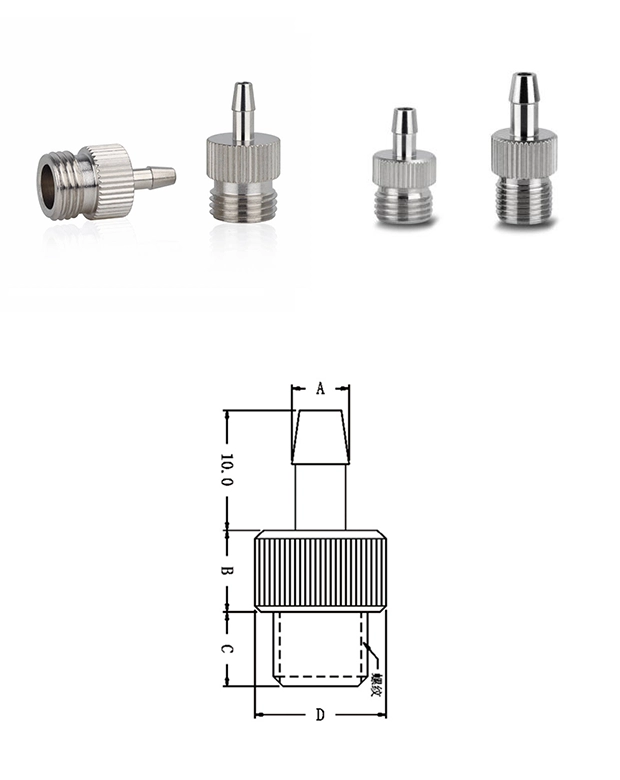

| Series | Model number | Specification of trachea | Thread specification | Outer diameter(A) | Length (B) | Length (C) | Outer diameter(D) |
|---|---|---|---|---|---|---|---|
| Trachea turns 1 tooth | KZ-JT-034 | 4*2.5mm | PT1/8-28 | 3.8 | 6.5 | 8 | φ11.0 |
| KZ-JT-035 | 6*4.0mm | PT1/8-28 | 4.8 | 6.5 | 8 | φ11.0 | |
| KZ-JT-089 | 6*4.0mm | PT1/8-28 | 4.8 | 6.5 | 8 | H10 Hexagon | |
| KZ-JT-036 | 8*5.0mm | PT1/8-28 | 5.9 | 6.5 | 8 | φ11.0 | |
| KZ-JT-037 | 8*5.5mm | PT1/8-28 | 6.8 | 6.5 | 8 | φ11.0 | |
| KZ-JT-038 | 10*6.5mm | PT1/8-28 | 7.9 | 6.5 | 8 | φ11.0 | |
| Trachea to 2 teeth | KZ-JT-039 | 4*2.5mm | PT1/4-19 | 3.8 | 6.5 | 8 | φ14.0 |
| KZ-JT-040 | 6*4.0mm | PT1/4-19 | 4.8 | 6.5 | 8 | φ14.0 | |
| KZ-JT-041 | 8*5.0mm | PT1/4-19 | 5.9 | 6.5 | 8 | φ14.0 | |
| KZ-JT-042 | 8*5.5mm | PT1/4-19 | 6.8 | 6.5 | 8 | φ14.0 | |
| KZ-JT-043 | 10*6.5mm | PT1/4-19 | 7.9 | 6.5 | 8 | φ14.0 | |
| 6MM trachea Turn M teeth | KZ-JT-044 | 6*4.0mm | M5*0.8 | 4.8 | 6.8 | 6.2 | φ11.0 |
| KZ-JT-045 | 6*4.0mm | M6*1.0 | 4.8 | 6.8 | 6.2 | φ11.0 | |
| KZ-JT-046 | 6*4.0mm | M6*1.0 | 4.8 | 6.8 | 6.2 | φ11.0 | |
| KZ-JT-047 | 6*4.0mm | M8*1.25 | 4.8 | 6.8 | 6.2 | φ11.0 | |
| 4MM Trachea to M6 | KZ-JT-094 | 4*2.5mm | M6*1.0 | 3.8 | 6.8 | 8 | φ8.0 |
