Bayonet Needle

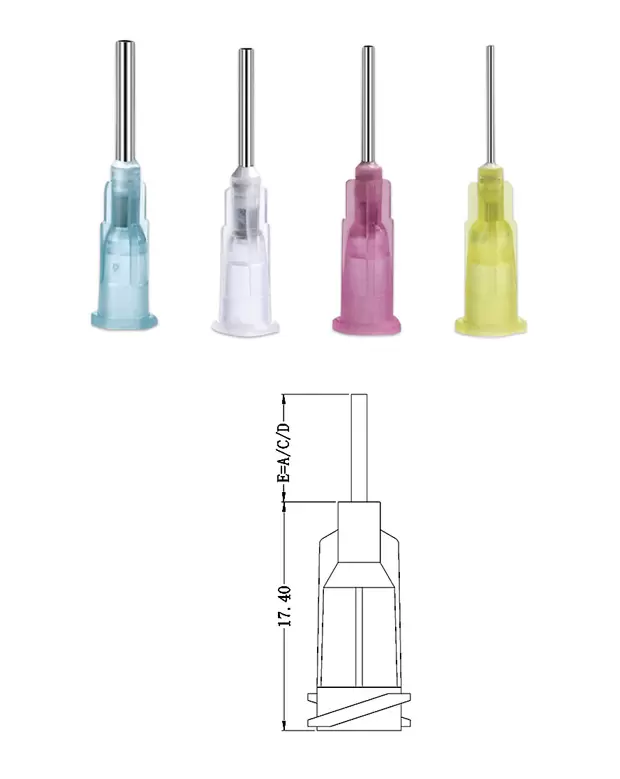

14G-30G Bayonet Plastic Steel Dispenser Blunt Nozzle

Package
1000Pcs / a pouch
Color
Pale green-Pale yellow
Model
14G-30G
Size
1/2inch(13mm)
Origin
Mainland China
Needle tube material
Stainless Steel
Needle seat material
PP

Contact Sales Team

+86 13714206033

Product Overview

The stainless steel pipes of bayonet needles are precision polished without burrs, which can achieve precise glue output and completely eliminate the occurrence of undesirable phenomena such as wire drawing.

Needle tube material:stainless steel

Needle seat material: PP

Norm	Model			Noedle outer diameter	Needle inner diameter	Colour	Wrap
Norm	Pin length 6.5mm	Pin length 13mm	Pin length 25mm	Noedle outer diameter	Needle inner diameter	Colour	Wrap
14G	KN-14G-A	KN-14G-C	KN-14G-D	2.00	1.70	Pale green	1000PCS/a pouch
15G	KN-15G-A	KN-15G-C	KN-15G-D	1.80	1.50	Dark green
16G	KN-16G-A	KN-16G-C	KN-16G-D	1.60	1.35	Transparent color
18G	KN-18G-A	KN-18G-C	KN-18G-D	1.30	1.00	Pink
19G	KN-19G-A	KN-19G-C	KN-19G-D	1.05	0.80	Milky yellow
20G	KN-20G-A	KN-20G-C	KN-20G-D	0.90	0.65	Yellow
21G	KN-21G-A	KN-21G-C	KN-21G-D	0.81	0.55	Green
22G	KN-22G-A	KN-22G-C	KN-22G-D	0.72	0.45	Black
23G	KN-23G-A	KN-23G-C	KN-23G-D	0.63	0.40	Blue
24G	KN-24G-A	KN-24G-C	KN-24G-D	0.56	0.35	Purple
25G	KN-25G-A	KN-25G-C	KN-25G-D	0.50	0.30	Orange
26G	KN-26G-A	KN-26G-C	KN-26G-D	0.45	0.22	Brown
27G	KN-27G-A	KN-27G-C	KN-27G-D	0.40	0.18	Light gray
28G	KN-28G-A	KN-28G-C	KN-28G-D	0.35	0.17	Pale blue
30G	KN-30G-A	KN-30G-C	KN-30G-D	0.30	0.13	Pale yellow
