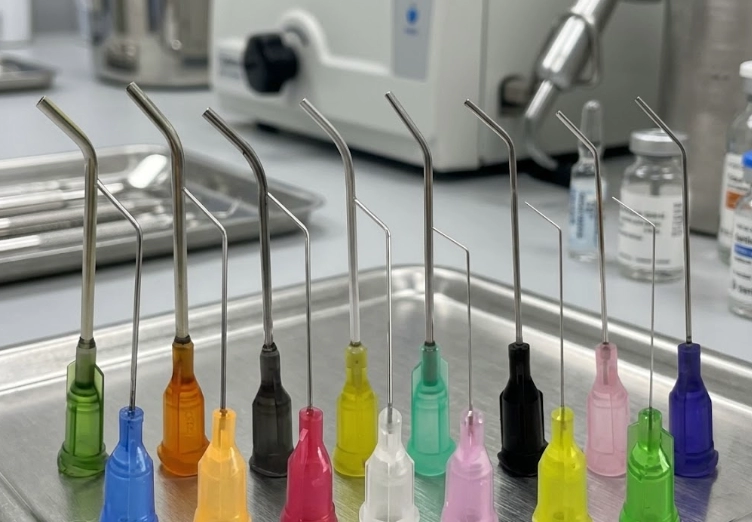

In the world of automated assembly and high-precision manufacturing, the margin for error is often measured in microns. When dealing with intricate electronic components, delicate micro-medical devices, or tight-tolerance PCB assemblies, a standard straight dispensing needle often falls short. This is where the Pre-bent Needle (also known as the elbow dispensing needle) becomes an indispensable tool for process engineers and production managers.
At Contriu, we understand that true efficiency is found in the details. When a dispensing application requires access to lateral surfaces or hidden cavities that a vertical approach cannot reach, our precision-engineered Contriu Pre-bent Needles provide the exact trajectory needed for repeatable, high-quality results.
The Engineering Behind the Bend: Precision vs. Performance
Dispensing is rarely a "one-size-fits-all" scenario. Many high-tech assembly challenges involve "blind spots" where the tip of the needle must reach around a component protrusion to apply a precise bead of adhesive, solder paste, or lubricant.
A poorly executed bend in a needle can cause flow turbulence, inconsistent pressure drops, or even tip clogging due to structural deformation. Our elbow dispensing needles are created through a proprietary precision bending process. By carefully controlling the bending radius and maintaining the structural integrity of the stainless steel cannula, we ensure that the fluid flow path remains undisturbed. This results in stable dispensing, preventing the "drooling" or "tailing" effects that often plague automated systems when using inferior, manually bent alternatives.
Material Integrity: The Contriu Standard
For high-volume production lines, durability is just as important as precision. Our standard configuration features:
● Needle Tube: High-grade stainless steel that provides excellent resistance to corrosion and chemical reaction, ensuring that reactive adhesives or fluxes do not degrade the tip during prolonged use.
● Needle Seat: A robust Polypropylene (PP) hub that offers a secure, airtight fit for standard luer-lock dispensing barrels. This combination ensures that the system maintains steady back-pressure, which is critical for maintaining a uniform bead width across thousands of dispense cycles.
Solving Real-World Assembly Challenges
Why choose a pre-bent solution? The answer lies in process optimization.
● Lateral Access: In applications like mobile device casing assembly, applying an adhesive bead to a side wall is physically impossible with a straight tip without damaging the component. A 45-degree or 90-degree stainless steel elbow needle allows the operator to maintain a perpendicular approach to the surface, ensuring the fluid reaches the target zone without interference.
● Reduced Cycle Times: When you can approach a target from an angle, you eliminate the need for complex, multi-axis motion in your dispensing robot. Simplification of the movement path translates directly into faster cycle times and increased throughput.
● Application Versatility: From medical device bonding where fluid placement must be ultra-sterile and precise, to semiconductor encapsulation, Contriu bent dispensing tips are designed to meet a wide range of uses. Whether your project requires a specific angle or a custom gauge, the versatility of our pre-bent range ensures your production line remains agile.
Choosing the Right Geometry for Your Needs
When selecting a pre-bent precision needle, it is essential to consider the viscosity of the medium being dispensed. Higher viscosity fluids require a larger inner diameter to minimize resistance, while lower viscosity liquids—like cyanoacrylates—demand finer tips to control flow volume.
At Contriu, we advocate for a collaborative approach. Our technical team works with manufacturers to match the needle gauge and bending angle to the specific chemistry of the fluid and the geometry of the part. This level of technical consultation is what sets us apart from simple hardware suppliers; we act as a partner in your dispensing success.
Conclusion
The transition from standard straight needles to precision pre-bent dispensing needles is a strategic move toward higher yield rates and lower waste. By reducing the physical barriers to accurate fluid placement, you empower your production line to handle more complex designs with total confidence.
Invest in the tools that match your technical ambitions. With Contriu’s commitment to precision-bending excellence, you are not just buying a consumable—you are optimizing the heart of your dispensing process.
