MA Static Mixer
desc
MS Static Mixer
MS Resin Static Mixer Nozzle
- S0524S-S1332S
Model - 149.0-379.0Length
- 1.5-3.987Caliber
- Mainland ChinaOrigin
- 2.3CC-34.5CCCapacity
Product Overview
S series of yellow round mouth mixing tube diameter for the industry unified standard, commonly used in glue machine above use. Customers can choose different models according to the mixing characteristics of the two components. In order to better improve production.

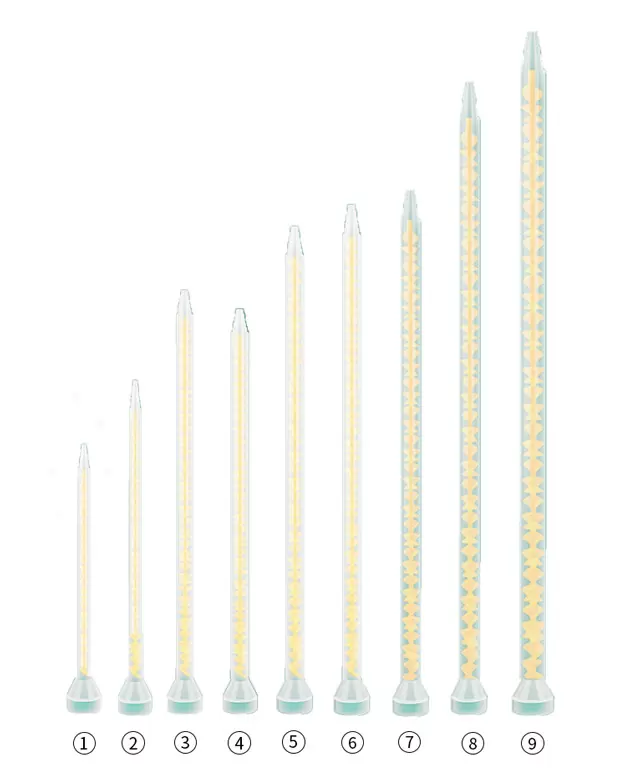

| Serial number | Model | Number of nodes | Outer diameter | Inner diameter | Length | Caliber | Capacity |
|---|---|---|---|---|---|---|---|
|
1 | KZ-S0524S | 24 | 8.0 | 5.4 | 149.0 | 1.5 | 2.3CC |
| 2 | KZ-S0532S | 32 | 10.0 | 5.4 | 188.0 | 1.5 | 2.8CC |
| 3 | KZ-S0632S | 32 | 10.0 | 6.35 | 235.0 | 1.8 | 6.6CC |
| 4 | KZ-S0824S | 24 | 12.0 | 8.0 | 223.0 | 2.39 | 8.5CC |
| 5 | KZ-S0832S | 32 | 12.0 | 8.0 | 287.0 | 2.39 | 11.5CC |
| 6 | KZ-S1024S | 24 | 14.0 | 10.0 | 276.0 | 2.99 | 16CC |
| 7 | KZ-S1032S | 32 | 14.0 | 10.0 | 352.0 | 2.99 | 23CC |
| 8 | KZ-S1324S | 24 | 16.0 | 13.0 | 293.0 | 3.987 | 27CC |
| 9 | KZ-S1332S | 32 | 16.0 | 13.0 | 379.0 | 3.987 | 34.5CC |
