desc

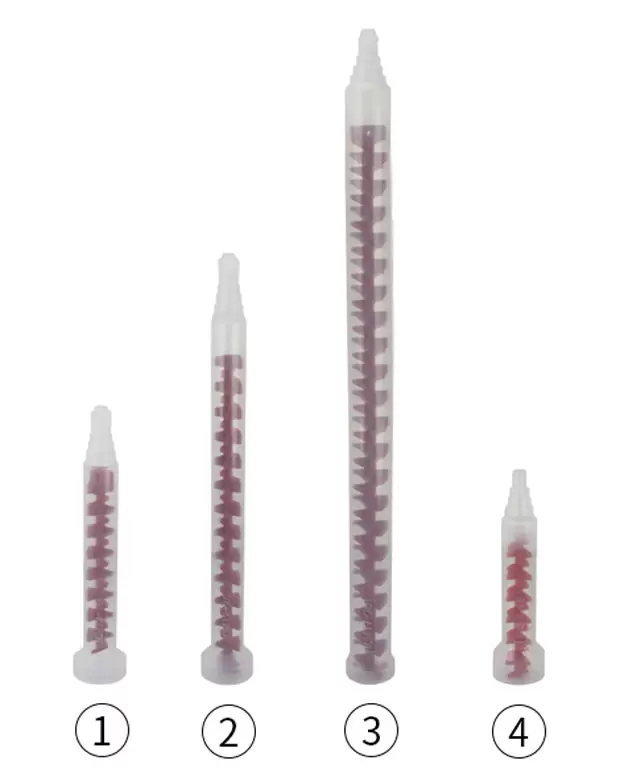

Compared with static mixing tubes, RM/RS series dynamic mixing tubes have the advantage that the blades can rotate quickly and are suitable for liquid threaded mixing tubes with special viscosity. lts core is composed of spiral blades arranged in sequence. This structura mixing tube has the characteristics of high efficiency, economy, durability, etc. When double glue fluid passes through each blade, each fluid is cut into 2 parts, with better mixing effect and good interface sealing. The unique design of the screw tooth of the glue outlet ensures the sealing and stability of the glue.
Serial number | Model | Number of nodes | Outer diameter | Inner diameter | Length | Caliber | Capacity |
---|---|---|---|---|---|---|---|
1 | KZ-RM1216 | 16 | 16.0 | 12.0 | 128.0 | 2.8 | 50PCS/bag |
2 | KZ-RM1226 | 26 | 15.0 | 12.0 | 182.0 | 4.5 | 50PCS/bag |
3 | KZ-RM1726 | 26 | 21.0 | 17.0 | 216.0 | 4.5 | 50PCS/bag |
4 | KZ-RS0916 | 16 | 12.0 | 9.0 | 102.0 | 2.8 | 50PCS/bag |
5 | KZ-R1012S | 12 | 14.0 | 10.0 | 155.0 | 3.0 | 50PCS/bag |
6 | KZ-R1312S | 12 | 17.0 | 13.0 | 197.0 | 4.0 | 50PCS/bag |
