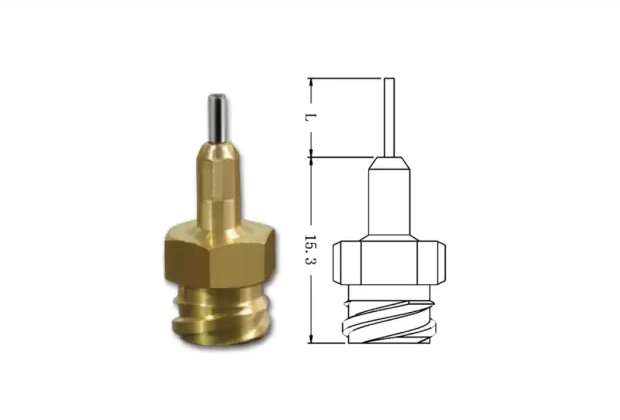

Integrated double-threaded extended precision needle
Integrated Tapered Custom-Length Precision Needle
PUR Needle
PUR High-Temperature Hot-Melt Adhesive Precision Double-Thread Needle
- 100Pcs/Box
Package - 8G-23GModel
- Mainland ChinaOrigin
- M5 internal thread (hexagonal)Thread
- Stainless steelNeedle tube material
Product Overview
Needle tube material: stainless steel 304
Needle holder material: brass (copper color/nickel plated)
| Specifications | Needle Outer Diameter | Needle inner Diameter | Tube length | Packaging |
|---|---|---|---|---|
| 100PCS /box | ||||
| 14G | 2.10 | 1.60 | 4MM | |
| 15G | 1.84 | 1.36 | ||
| 16G | 1.64 | 1.20 | ||
| 17G | 1.48 | 1.12 | ||
| 18G | 1.28 | 0.84 | ||
| 19G | 1.05 | 0.75 | ||
| 20G | 0.91 | 0.61 | ||
| 21G | 0.81 | 0.51 | ||
| 22G | 0.71 | 0.41 | ||
| 23G | 0.63 | 0.36 | ||
| 24G | 0.56 | 0.34 | ||
| 25G | 0.51 | 0.26 |
