In high-precision manufacturing environments—ranging from electronics encapsulation and medical device assembly to microfluidic bonding and laboratory applications—dispensing accuracy directly determines product reliability. While pumps, controllers, and automation systems often receive most of the attention, the final and most critical interface remains the dispensing needle.

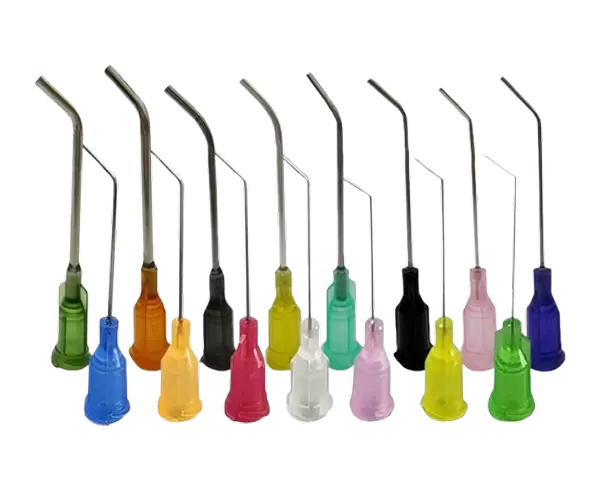

The Pre-bent Needle, also known as an elbow needle, is engineered specifically to address spatial constraints, angular delivery requirements, and complex dispensing geometries. Through a precision bending process, it enables stable, repeatable, and controlled fluid delivery in applications where straight needles are mechanically impractical or inefficient.
At Contriu, the Pre-bent Needle is not merely an accessory component—it is a precision-engineered fluid delivery solution designed for demanding industrial environments.
Structural Engineering Behind the Pre-bent Needle
1. Precision Bending Process: Mechanical Integrity Without Compromise
The defining characteristic of a Pre-bent Needle is its controlled curvature. However, bending a needle tube is far more complex than simple deformation. Improper bending can result in:
To ensure dimensional integrity, the bending process must be tightly controlled using calibrated tooling and stress-managed forming techniques. The objective is to maintain:
Contriu utilizes a precision bending process that preserves the circular cross-section of the stainless steel needle tube, ensuring laminar flow characteristics are maintained even at various bend angles.
2. Material Selection: Performance Under Chemical and Mechanical Stress
Needle Tube Material: Stainless Steel
The needle tube is manufactured from high-grade stainless steel, offering:
Corrosion resistance against aggressive adhesives and chemicals
High tensile strength
Dimensional stability under pressure
Abrasion resistance for long service life
In automated dispensing systems operating under continuous cycles, stainless steel ensures structural reliability and minimal deformation even under high back pressure conditions.
Needle Seat Material: PP (Polypropylene)
The needle seat is made from precision-molded PP, chosen for:
Chemical resistance
Lightweight structural stability
Compatibility with standard luer lock systems
Cost-effective durability
This material pairing—stainless steel tube with PP seat—creates a balanced design optimized for both mechanical performance and chemical compatibility.
Why Pre-bent Geometry Enhances Dispensing Stability
Controlled Access in Constrained Environments
Many modern assemblies involve tight cavities, vertical clearances, or obstructed geometries. Straight needles often require awkward positioning of the entire dispensing system, introducing instability.
The Pre-bent Needle allows:
Angled access without repositioning the workpiece
Improved visibility of dispensing points
Reduced collision risk in automated lines
Stable flow direction control
By redirecting the dispensing trajectory through engineered curvature, manufacturers can maintain consistent alignment without compromising machine ergonomics.
Flow Dynamics and Stability
Fluid mechanics within a bent tube can introduce turbulence if not engineered correctly. Properly manufactured Pre-bent Needles maintain:
Smooth internal bore transitions
Minimal cross-sectional distortion
Predictable flow behavior
This ensures stable bead formation, accurate droplet deposition, and controlled line width—critical in electronics potting, UV adhesive bonding, and micro-dispensing operations.
Customizable Angles and Wide Application Range
A key advantage of the Pre-bent Needle lies in its customizable bending angles. Different production scenarios require different geometries, including:
30° for slight directional adjustments
45° for moderate angular access
90° for vertical-to-horizontal transitions
Custom angles for complex robotic systems
Contriu provides various angle configurations tailored to application-specific requirements. This flexibility expands usability across industries such as:
Semiconductor packaging
PCB conformal coating
Automotive sensor encapsulation
Medical component bonding
Precision laboratory reagent dispensing
Manufacturing Precision and Quality Control
Dimensional Tolerance Management
In high-accuracy dispensing systems, internal diameter tolerances directly influence volumetric control. Manufacturing processes must maintain:
Advanced inspection systems verify roundness, concentricity, and surface integrity to guarantee consistent performance across production batches.
Stress Management in Bent Structures
Bending stainless steel introduces residual stress, which—if uncontrolled—can lead to:
Microfractures
Flow instability
Premature failure
Through optimized forming parameters and post-processing inspection, Contriu ensures structural integrity remains uncompromised.
Operational Benefits in Automated Production Lines
Integrating Pre-bent Needles into robotic dispensing systems offers measurable advantages:
Reduced repositioning time
Improved cycle efficiency
Lower defect rates
Enhanced repeatability
Increased production yield
By minimizing spatial interference and enabling precise angular delivery, manufacturers achieve higher throughput without sacrificing accuracy.
Conclusion: Precision Geometry Enables Precision Performance
The Pre-bent Needle is not merely a bent tube—it is a precision-engineered dispensing solution designed for controlled geometry, stable flow dynamics, and versatile application environments. Through stainless steel structural integrity and PP seat compatibility, combined with advanced bending techniques, it delivers consistent, reliable performance across industrial sectors.
By integrating engineered curvature with material science and dimensional control, Contriu provides a dispensing component that enhances operational efficiency, accuracy, and long-term durability.
For manufacturers operating in high-precision environments, the Pre-bent Needle represents a critical upgrade in dispensing system optimization.
