In the intricate worlds of advanced electronics assembly, micro-optics manufacturing, and biomedical device fabrication, precision is measured in microns. When applying conductive epoxies, UV-cured adhesives, or micro-droplets of flux, the margin for error is virtually non-existent. Traditional dispensing tips often suffer from structural limitations—such as fluid pooling, thread leakage, and pressure drop inconsistencies—that compromise high-speed production lines.
To overcome these micro-assembly bottlenecks, engineers and production managers are turning to advanced fluid delivery architectures. Engineered to set a new benchmark in fluid control, the Contriu Double Thread Precision Extended Needle combines an innovative structural design with exceptional flow dynamics, making it the definitive choice for high-precision micro-dispensing applications.
The Engineering Anatomy: The Power of Integrated Double-Thread Architecture
A common failure point in conventional dispensing setups is the connection interface between the needle tip and the adapter or barrel. Standard needles rely on basic screw-in mechanisms that can easily cross-thread, loosen under pneumatic vibration, or create dead zones where fluid gets trapped and cures prematurely.

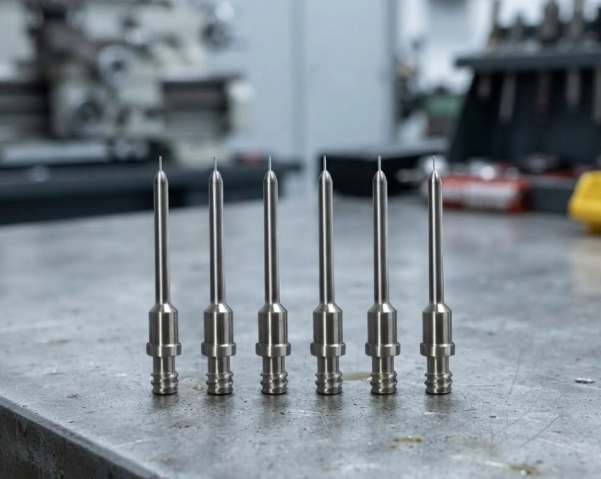

The Contriu double thread precision extended needle solves this structural vulnerability through a revolutionary integrated structure:
● Elimination of Thread-In Failures: By removing the cumbersome process of screwing the needle tip directly into a separate needle holder, the Contriu design ensures a seamless, leak-proof fluid pathway from the syringe barrel straight to the dispensing orifice.
● Double-Thread Locking Security: The proprietary dual-thread locking mechanism guarantees absolute concentricity and rotational stability during high-pressure dispensing cycles, completely eliminating needle wobble or detachment at high dispensing speeds.
● Optimized Tapered Geometry: The carefully engineered tapered shape delivers exceptional flow characteristics, drastically reducing fluid shear stress and ensuring a smooth, laminar flow rate for high-viscosity and low-viscosity fluids alike.
Multi-Tiered Performance: Why Precision Micro-Dispensing Demands Contriu
Achieving consistent, repeatable micro-dots requires looking closely at how fluid interacts with the inner walls of the needle. The Contriu precision extended needle delivers superior performance across three critical operational tiers:
1. Unmatched Flow Stability and Fluid Control
In automated dispensing, pressure fluctuations lead to tailing, stringing, or inconsistent dot volumes. The internal electropolished finish of the Contriu double thread dispensing needle minimizes wall friction. Combined with its extended reach, it allows operators to access deep recessed cavities on circuit boards or component housings without sacrificing back-pressure stability.
2. Enhanced Reach and Visibility in Complex Assemblies
Modern electronic components are increasingly dense and compact. The extended needle design provides the necessary clearance to navigate tight spatial constraints—such as narrow gaps between surface-mount components (SMD) or inside micro-sensor housings—giving operators a clear line of sight while preventing the dispensing barrel from colliding with fragile substrates.
3. Zero Contamination and Material Degradation
Because the Contriu high-precision micro-dispensing needle features a streamlined, crevice-free integrated internal structure, there are no microscopic pooling corners where reactive adhesives can stagnate. This prevents clogging, reduces cleaning downtime, and ensures that every shot delivered is fresh and chemically uniform.
Ideal Applications Across High-Tech Industries
The versatility and pinpoint accuracy of the Contriu double thread precision extended needle make it an indispensable tool across a broad spectrum of advanced manufacturing sectors:
● Electronics and Semiconductor Packaging: Ideal for underfill dispensing, die-attach adhesives, surface-mount glue dots, and conformal coating touch-ups where volume control is critical.
● Medical Device Manufacturing: Used extensively in the assembly of catheters, diagnostic biosensors, and wearable health monitors where biocompatible adhesives must be applied with flawless repeatability.
● Optics and Photonics: Perfect for precise UV-adhesive placement in camera module assembly, fiber optic alignment, and lens bonding without optical contamination.
● Automotive Electronics: Securing sensor components and ECU micro-circuits that must withstand extreme thermal and mechanical shock.
Maximizing ROI and Production Yields
For manufacturing engineers, component defects caused by poor dispensing consistency can cost thousands of dollars in scrapped material and rework time. Upgrading to a specialized industrial dispensing needle like the Contriu series is a direct investment in first-pass yield (FPY) optimization.
By eliminating leakage, stabilizing dot sizes down to fractional nanoliters, and reducing maintenance downtime, the Contriu double thread precision extended needle ensures your automated dispensing cells operate at peak efficiency, shift after shift.
Conclusion
Precision is not merely a feature in modern manufacturing—it is the foundation of product reliability. When your production line demands absolute control, zero leakage, and micro-scale accuracy, standard tips are simply not enough. Equip your facility with the Contriu double thread precision extended needle and experience the ultimate evolution in fluid dispensing performance.
