In modern high-speed electronics assembly, micro-optics packaging, and medical device manufacturing, dispensing precision is not merely a performance metric—it is the ultimate determinant of yield rate and product reliability. When dealing with micron-level fluid deposition of epoxies, underfills, UV adhesives, and silicone sealants, the choice of dispensing needle dictates the boundary between flawless production and catastrophic material waste. Among the elite choices available to manufacturing engineers, the Contriu ASM Type Precision Needle has emerged as a gold standard. Engineered for supreme fluid dynamics and microscopic tolerance control, Contriu ASM Type Precision Needles empower high-precision automated dispensing systems to achieve unprecedented repeatability.

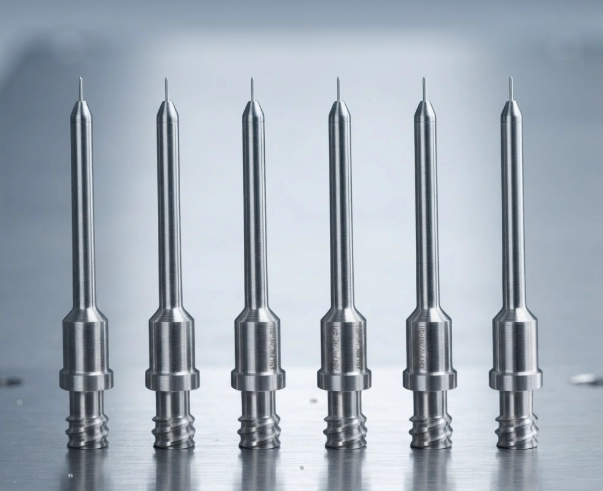

The Engineering Anatomy of Contriu ASM Type Precision Needles
To understand why top-tier electronics and semiconductor packaging facilities specify Contriu ASM Type Precision Needles, one must examine their metallurgical and structural design. Conventional dispensing tips frequently suffer from internal burrs, inconsistent inner diameters (ID), and poor concentricity, which lead to fluid tailing, satellite droplets, and variable dot volumes.
Contriu ASM Type Precision Needles eliminate these failure modes through rigorous engineering:
● High-Grade Stainless Steel & Special Alloy Construction: Fabricated using premium medical-grade 304 or specialized hardened alloys, the cannula resists chemical degradation from aggressive flux, UV resins, and anaerobic adhesives.
● Micro-Polished Internal Conduits: The inner walls undergo proprietary electrochemical polishing to reduce fluid shear stress and friction, ensuring smooth, laminar flow even for high-viscosity epoxies.
● Ultra-Flat Butt-Welded Tip End: Unlike standard sheared tips that exhibit jagged edges, Contriu ASM Type Precision Needles feature precision-machined, burr-free flat ends that guarantee clean fluid break-off without stringing or dripping.
● Secure Lock Luer Design: Equipped with a precision-molded polypropylene safety hub, these needles lock seamlessly into automated dispensing robots, pneumatic syringes, and time-pressure controllers without leaking under high injection pressures.
Critical Applications Driving Demand for Contriu ASM Type Precision Needles
Modern industrial applications demand extreme consistency. Contriu ASM Type Precision Needles are deployed across multiple high-stakes sectors where failure is not an option:
1. Semiconductor Packaging and Die-Attach Underfill
In advanced semiconductor packaging, capillary underfill (CUF) and non-conductive film (NCF) processes require microscopic fluid lines. Using Contriu ASM Type Precision Needles for semiconductor packaging ensures that precise fillets of epoxy flow beneath flip-chip dies without forming voids, protecting delicate wire bonds against thermal-mechanical stress.
2. SMT Surface Mount Technology and PCB Conformal Coating
High-density PCB assembly relies on jetting and dispensing solder paste or surface mount adhesives. Engineers turning to Contriu ASM Type Precision Needles for SMT assembly benefit from tight tolerance control, which prevents bridging on ultra-fine pitch components (01005 and smaller) and ensures uniform dot diameters at high cycle speeds.
3. Medical Device Micro-Dispensing
Medical catheter bonding, sensor encapsulation, and pacemaker assembly require biocompatible, contamination-free fluid delivery. Contriu ASM Type Precision Needles for medical device manufacturing provide the sterile reliability and absolute shot-to-shot consistency required to pass strict FDA and ISO validation standards.
Optimizing Dispensing Parameters with Contriu ASM Type Precision Needles
Achieving optimal performance with Contriu ASM Type Precision Needles requires a holistic understanding of fluid dynamics, pneumatic pressure, and cycle timing. Because these needles feature ultra-low tolerance inner diameters, operators must calibrate their dispensing profiles carefully:
● Viscosity and Pressure Tuning: While standard needles require higher pressure to push viscous fluids through rough channels, the smooth inner geometry of Contriu ASM Type Precision Needles allows for lower operational pressures. This reduces fluid degradation and air bubble entrapment.
● Backpressure and Suck-Back Control: Utilizing a vacuum suck-back phase on automated pick-and-place or dispensing gantries prevents oozing between dispensing cycles, taking full advantage of the needle's clean-cut tip geometry.
● Z-Axis Clearance Management: Maintaining an optimized stand-off distance between the tip and the substrate ensures uniform droplet wetting and prevents mechanical tip deformation during high-speed production runs.
Comparative Advantage: Why Manufacturers Upgrade to Contriu
When production line managers evaluate fluid dispensing accessories, the total cost of ownership (TCO) outweighs initial consumable savings. Cheap generic tips cause frequent nozzle clogging, inconsistent dot weights, and expensive line stoppages.
By integrating Contriu ASM Type Precision Needles for automated dispensing systems, manufacturers unlock tangible operational benefits:
● Drastic Reduction in Clogging: The polished inner bore minimizes particulate accumulation from filled adhesives (such as silver-filled epoxies).
● Extended Service Life: Robust hub bonding prevents separation of the stainless steel cannula under continuous high-pressure industrial cycles.
● Enhanced Yield Rates: Uncompromising dimensional stability ensures that every printed circuit board or medical component receives the exact micro-liter volume required, slashing rework rates and scrap.
Conclusion
In the competitive landscape of modern high-tech manufacturing, precision is the ultimate differentiator. Every micro-gram of adhesive dispensed impacts product integrity, longevity, and brand reputation. By specifying Contriu ASM Type Precision Needles, engineering teams secure a reliable, high-performance edge that transforms fluid application from a variable bottleneck into a precision-engineered science. Upgrade your production lines today with Contriu—where engineering excellence meets absolute dispensing accuracy.
