Double Threaded Needle

8G-30G External Thread All Metal Glue Nozzle

Package
12Pcs/Box
Color
Silver-Gray
Model
8G-32G
Usage
Industrial Glue DispensingLab use
Size
1/2inch(13mm)
Origin
Mainland China
Material
Stainless Steel

Contact Sales Team

+86 13714206033

Product Overview

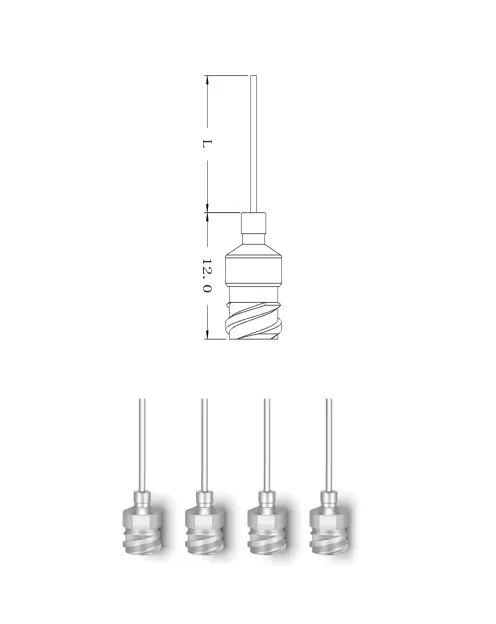

Double threaded metal needles compared to bayonet metal needles can be more tightly, more firmly installed on the barrel, a variety of specifications to choose, expandthe scope of use of dispensing.

Needle tube material: stainless steel

Needle holder material: brass (nickel plated)

Norm	Model number			Needle Outer Diameter	Needle inner Diameter	Wrap
Norm	Pin length6.5mm	Pin length13mm	Pin length25mm	Needle Outer Diameter	Needle inner Diameter	Wrap
8G	DTMN-8G-A	DTMN-8G-C	DTMN-8G-D	4.00	3.50	100PCs/locket
10G	DTMN-10G-A	DTMN-10G-C	DTMN-10G-D	3.50	3.00
11G	DTMN-11G-A	DTMN-11G-C	DTMN-11G-D	3.00	2.50
12G	DTMN-12G-A	DTMN-12G-C	DTMN-12G-D	2.80	2.30
13G	DTMN-13G-A	DTMN-13G-C	DTMN-13G-D	2.40	1.90
14G	DTMN-14G-A	DTMN-14G-C	DTMN-14G-D	2.10	1.60
15G	DTMN-15G-A	DTMN-15G-C	DTMN-15G-D	1.84	1.36
16G	DTMN-16G-A	DTMN-16G-C	DTMN-16G-D	1.64	1.20
17G	DTMN-17G-A	DTMN-17G-C	DTMN-17G-D	1.48	1.12
18G	DTMN-18G-A	DTMN-18G-C	DTMN-18G-D	1.28	0.84
19G	DTMN-19G-A	DTMN-19G-C	DTMN-19G-D	1.05	0.75
20G	DTMN-20G-A	DTMN-20G-C	DTMN-20G-D	0.91	0.61
21G	DTMN-21G-A	DTMN-21G-C	DTMN-21G-D	0.81	0.51
22G	DTMN-22G-A	DTMN-22G-C	DTMN-22G-D	0.71	0.41
23G	DTMN-23G-A	DTMN-23G-C	DTMN-23G-D	0.63	0.36
24G	DTMN-24G-A	DTMN-24G-C	DTMN-24G-D	0.56	0.34
25G	DTMN-25G-A	DTMN-25G-C	DTMN-25G-D	0.51	0.26
26G	DTMN-26G-A	DTMN-26G-C	DTMN-26G-D	0.46	0.24
27G	DTMN-27G-A	DTMN-27G-C	DTMN-27G-D	0.41	0.21
28G	DTMN-28G-A	DTMN-28G-C	DTMN-28G-D	0.35	0.18
30G	DTMN-30G-A	DTMN-30G-C	DTMN-30G-D	0.31	0.16
32G	DTMN-32G-A	DTMN-32G-C	DTMN-32G-D	0.25	0.10
