ASM Type Precision Needle
ASM Integrated LED Dual-Thread Precision Dispensing Needle
Sharpened Needle
14G-30G Sharpened metal extended chamfer grinding needle tip
- 12Pcs/Box
Package - Silver-GrayColor
- 8G-32GModel
- Industrial Glue DispensingLab useUsage
- 1/2inch(13mm)Size
- Mainland ChinaOrigin
- Stainless SteelMaterial
Product Overview
Needle tube material: stainless steel
Needle holder material: brass (copper color/nickel plated), stainless steel material can be customized

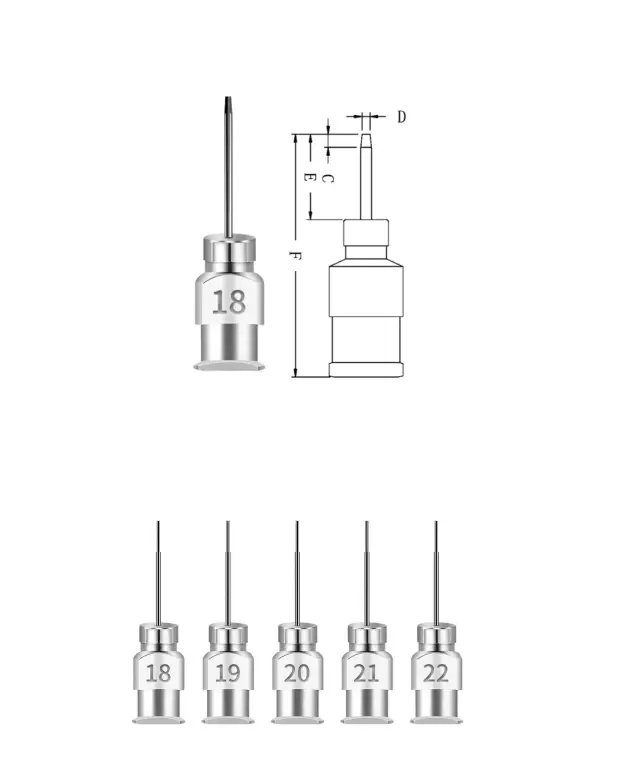

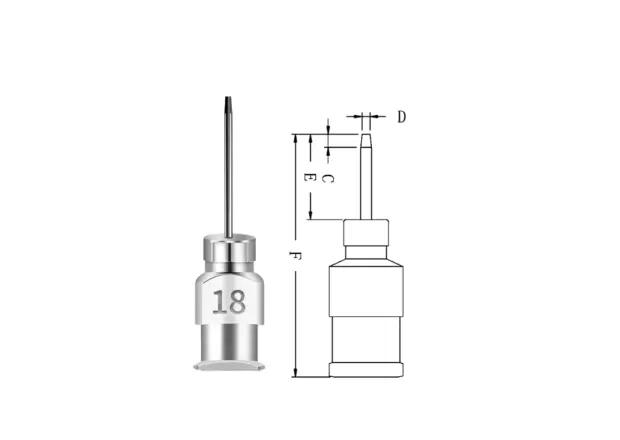

| Specifications | Needle outer diameter | Needle inner diameter | Length of needle tip taper | Outer diameter of needle tip | Tube length | Packaging |
|---|---|---|---|---|---|---|
| 18G | 1.28 | 0.84 | 1.50 | 0.93 | Customized | 12PCS/small box 120PCS/large box |
| 19G | 1.05 | 0.75 | 1.00 | 0.84 | ||
| 20G | 0.90 | 0.60 | 1.00 | 0.70 | ||
| 21G | 0.80 | 0.50 | 1.00 | 0.60 | ||
| 22G | 0.70 | 0.40 | 1.00 | 0.50 | ||
| 23G | 0.63 | 0.36 | 1.00 | 0.45 | ||
| 24G | 0.56 | 0.34 | 1.00 | 0.40 | ||
| 25G | 0.51 | 0.26 | 1.00 | 0.34 | ||
| 26G | 0.46 | 0.24 | 1.00 | 0.33 | ||
| 27G | 0.41 | 0.21 | 1.00 | 0.29 | ||
| 28G | 0.35 | 0.18 | 1.00 | 0.27 | ||
| 30G | 0.31 | 0.16 | 1.00 | 0.24 |
