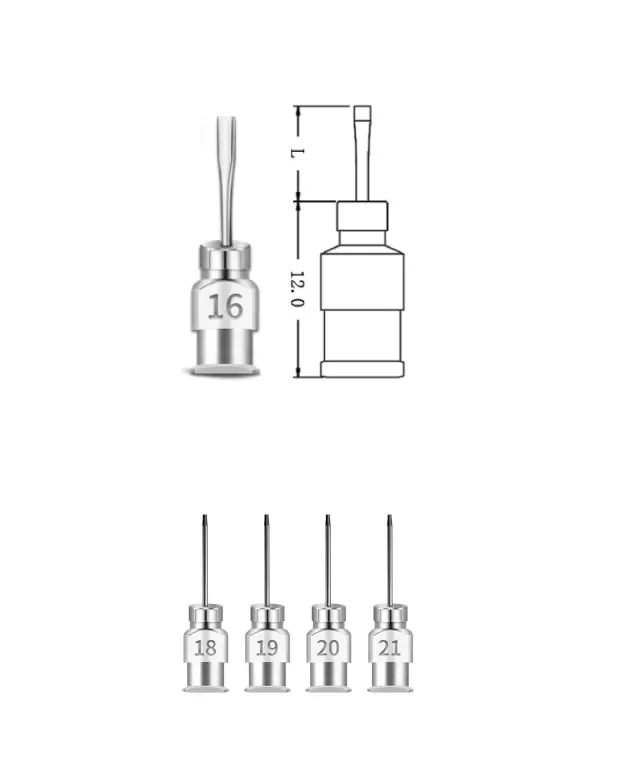

Double Thread Precision Extended Needle
0.1mm-0.5mm can be customized for precision needle tip length

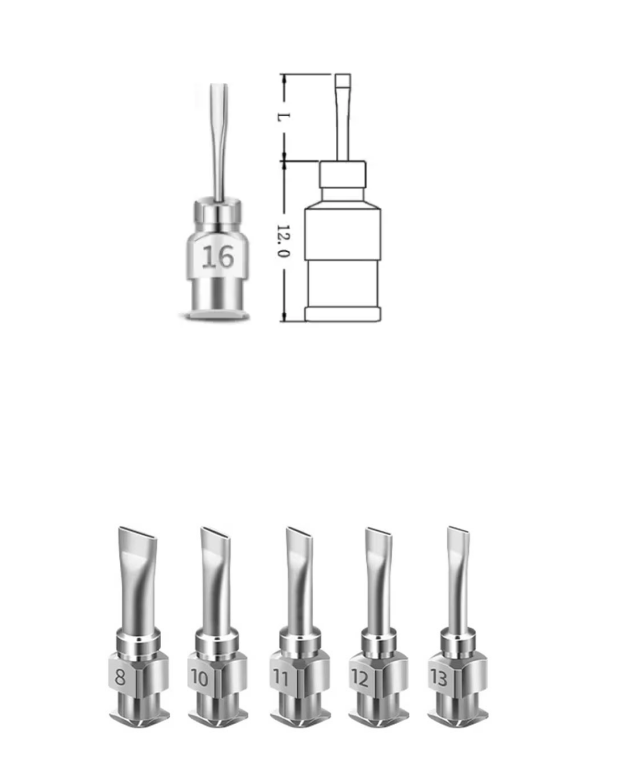

Metal Flat Needle
8G-23G Flat mouth inner diameter 0.6 mm,accept OEM
- 12Pcs/Box
Package - Silver-GrayColor
- 8G-32GModel
- Industrial Glue DispensingLab useUsage
- 1/2inch(13mm)Size
- Mainland ChinaOrigin
- Stainless SteelMaterial
Product Overview
Needle tube material: stainless steel
Needle holder material: brass (copper color/nickel plated), stainless steel material can be customized
| Specifications | Needle outer diameter | Needle inner diameter | Tube length | Packaging |
|---|---|---|---|---|
| 8G | 4.00 | 3.50 | 13MM | 12PCS/small box 120PCS/large box |
| 10G | 3.50 | 3.00 | ||
| 11G | 3.00 | 2.50 | ||
| 12G | 2.80 | 2.30 | ||
| 13G | 13G | 1.90 | ||
| 14G | 2.10 | 1.60 | ||
| 15G | 1.84 | 1.36 | ||
| 16G | 1.64 | 1.20 | ||
| 17G | 1.48 | 1.12 | ||
| 18G | 1.28 | 0.84 | ||
| 19G | 1.05 | 0.75 | ||
| 20G | 0.90 | 0.60 | ||
| 21G | 0.80 | 0.50 | ||
| 22G | 0.70 | 0.40 | ||
| 23G | 0.63 | 0.36 | ||
| 24G | 0.56 | 0.34 | ||
| 25G | 0.51 | 0.26 | ||
| 26G | 0.46 | 0.24 | ||
| 27G | 0.41 | 0.21 | ||
| 28G | 0.35 | 0.18 | ||
| 30G | 0.31 | 0.16 | ||
| 32G | 0.25 | 0.10 |
