Precision, purity, and pressure control are the unsung heroes of high-reliability electronics manufacturing. When you are dispensing conductive adhesives, SMT red glue, or UV-curable encapsulants on a high-speed assembly line, the hardware holding your fluid is just as critical as the chemical formulation itself. Substandard packaging introduces air entrapment, viscosity drift, and nozzle clogging—the exact failure modes that derail surface mount technology (SMT) lines.
Engineered for precision dispensing, the Contriu Plastic Old US Style Glue Cylinder bridges the gap between raw chemical performance and consistent dispensing execution.
1. Anatomy of Precision: Why "Old US Style" Design Dominates SMT Lines
The "Old US Style" configuration remains an industry-standard benchmark for pneumatic fluid dispensing because of its robust pneumatic seal integrity and universal compatibility with standard adapter assemblies, air lines, and automated dispensing robots.
● Thread Stability and Air Tightness: Featuring robust, precision-molded threading, Contriu cylinders prevent pressure leakage under high air pulses. This ensures consistent volumetric delivery shot after shot.
● Wall Smoothness and Shear Reduction: The internal barrel walls undergo an advanced secondary polishing treatment. This minimizes fluid shear stress, keeping highly filled liquids like conductive adhesives and thermal interface materials (TIMs) from separating during high-pressure extrusion.
● Zero-Draft Precision: The inner diameter maintains a strict cylindrical tolerance from top to bottom, ensuring the wiper piston moves smoothly without catching or causing micro-air gaps.
2. Material & Color Engineering: Matching Chemistry to UV and Light Protection
Different electronic encapsulation adhesives react adversely to ambient light, moisture, and chemical leaching. Contriu cylinders are engineered in specific material grades to safeguard sensitive formulations.

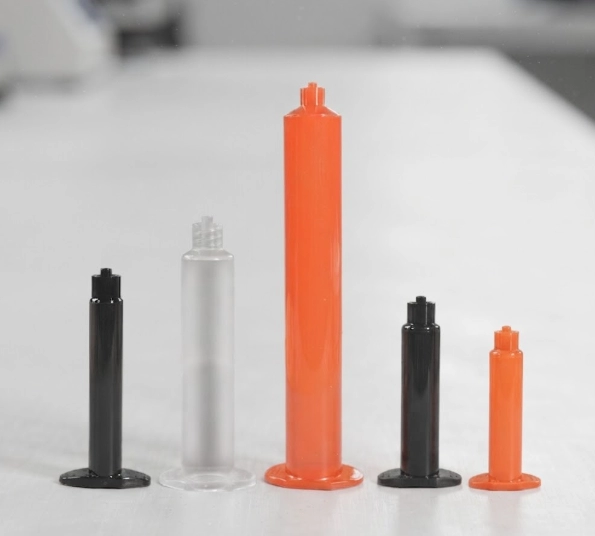

Cylinder Color / Material | Target Chemistry & Applications | Key Functional Benefit |
Clear / Transparent | General-purpose fluxes, lubricants, conformal paints, and non-light-sensitive epoxies. | Allows operators to monitor fluid levels visually in real-time and check for air bubbles. |
Amber (UV-Blocking) | General UV protection, moisture-sensitive silicones, and light-curable cyanoacrylates. | Blocks harmful UV wavelengths while permitting low-energy ambient light checks. (Note: Not recommended for extreme long-term storage of active UV resins). |
Black (Opaque / Light-Tight) | UV adhesives, light-curing structural acrylics, and light-sensitive anaerobic compounds. | Provides absolute optical blocking to prevent premature polymerization or chemical degradation inside the barrel. |
3. Application Matrix: Optimizing Contriu Cylinders for SMT & Electronic Assembly
Selecting the right cylinder capacity and color ensures seamless integration across diverse SMT and semiconductor packaging workflows.
Surface Mount Technology (SMT) and Red Glue Dispensing
For high-speed dispensing of SMT surface mount red adhesive (epoxy-based thermal curing adhesives used to hold components prior to wave soldering), pneumatic pressure stability is paramount. Contriu’s consistent barrel sizing prevents tailing, stringing, and satellite droplet formation.
Electronic Encapsulation and Potting
When dispensing two-part or single-part electronic encapsulation adhesives around delicate wire bonds, micro-controllers, or transformers, air-free delivery is essential. Using Contriu clear or amber cylinders with low-friction pistons ensures smooth beads without voids that could later trap moisture.
Conductive Adhesives and Micro-Soldering Fluxes
Silver-filled conductive adhesives and micro-electronic fluxes demand high chemical resistance. The virgin polyethylene/polypropylene blends used in Contriu cylinders prevent plasticizer migration and chemical corrosion, protecting the electrical properties of conductive fillers.
4. Best Practices for Defect-Free Dispensing
To maximize the performance of your dispensing process using Contriu cylinders, adhere to these technical guidelines:
● Centrifugal De-airing (Spinning): Always centrifuge filled cylinders prior to mounting on the robot to drive out microscopic air bubbles trapped during the filling process.
● Proper Piston Selection: Match the fluid viscosity with the correct wiper piston type (e.g., tight-fit flat wipers for low-viscosity fluxes versus double-lip wipers for high-viscosity thermal pastes).
● Pneumatic Line Conditioning: Ensure dry, filtered compressed air is supplied to the dispensing controller to prevent moisture contamination inside the cylinder.
● torage Protocols: Keep amber and black cylinders in climate-controlled environments, avoiding direct thermal spikes that could alter fluid viscosity.
Conclusion
Maximizing First Pass Yield (FPY) in modern SMT assembly requires optimization at every micro-level of the production chain. By integrating Contriu Plastic Old US Style Glue Cylinders tailored to your specific chemical requirements—whether clear, amber, or opaque black—you eliminate micro-variations, prevent premature UV curing, and guarantee flawless electronic encapsulation.
