PUR Needle
PUR High-Temperature Hot-Melt Adhesive Precision Double-Thread Needle

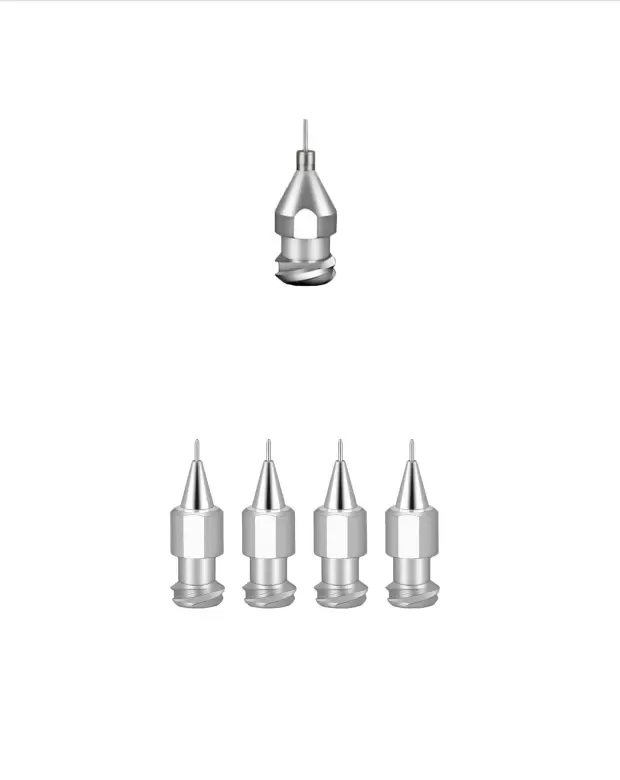

Conical High Precision Needles
Double-threaded high-precision inner cone stainless steel needle
- 12Pcs/Box
Package - Silver-GrayColor
- 8G-32GModel
- Industrial Glue DispensingLab useUsage
- 1/2inch(13mm)Size
- Mainland ChinaOrigin
- Stainless SteelMaterial
Product Overview
Material: stainless steel
| Specifications | Needle outer diameter | Needle inner diameter | Length of needle tip taper | Outer diameter of needle tip | Tube length | Packaging |
|---|---|---|---|---|---|---|
| 20G | 0.90 | 0.60 | / | / | 5mm | 1pcs/ box |
| 20G Tip Grinding | 0.90 | 0.60 | 1.00 | 0.70 | ||
| 21G | 0.80 | 0.50 | / | / | ||
| 21G Tip Grinding | 0.80 | 0.50 | 1.00 | 0.60 | ||
| 22G | 0.70 | 0.40 | / | / | ||
| 22G Tip Grinding | 0.70 | 0.40 | 1.00 | 0.50 | ||
| 23G | 0.63 | 0.36 | / | / | ||
| 23G Tip Grinding | 0.63 | 0.36 | 1.00 | 0.45 | ||
| 24G | 0.56 | 0.34 | / | / | ||
| 24G Tip Grinding | 0.56 | 0.34 | 1.00 | 0.40 | ||
| 25G | 0.51 | 0.26 | / | / | ||
| 25G Tip Grinding | 0.51 | 0.26 | 1.00 | 0.34 | ||
| 26G | 0.46 | 0.24 | / | / | ||
| 26G Tip Grinding | 0.46 | 0.24 | 1.00 | 0.33 | ||
| 27G | 0.41 | 0.21 | / | / | ||
| 27G Tip Grinding | 0.41 | 0.21 | 1.00 | 0.29 | ||
| 28G | 0.35 | 0.18 | / | / | ||
| 28G Tip Grinding | 0.35 | 0.18 | 1.00 | 0.27 | ||
| 30G | 0.31 | 0.16 | / | / | ||
| 30G Tip Grinding | 0.31 | 0.16 | 1.00 | 0.24 |
